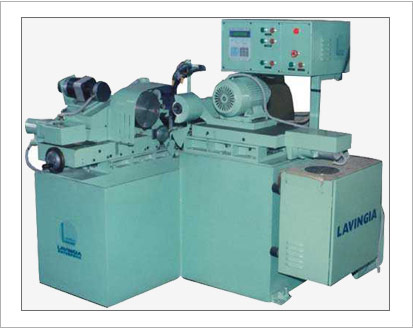

  HOLLOW GRINDING of COMPRESSOR VALVES



SOCKET MILLING SPM
DRILLING & TRAPING
DUPLEX GRINDING OF DISK BREAK ROTORS





  Download Brochure for more detail (PDF) click here



APPLICATIONS

  • For grinding 'hollow' on the valve plate segments and valve spring segments.
  • Max Segment Length - 340 Degrees.
  • Max Segment Width - 16mm.
  • Can simultaneously grind 2 identical segments set 180 degrees apart.
  • Automatic grinding cycle; includes size control, auto dressing & dressing compensation.
  • Rotary diamond dressing wheel.
  • Suitable for conventional or VIT-CBN abrasive wheels.
  • Customized PLC based controls, programmable grinding & dressing parameters.
  • Segment starting point & length control resolution : 0.1 degree.


OUR PRODUCT RANGE
CYLINDRICAL GRINDING MACHINES CNC, PLC & Manual (see table for details)
Internal Grinding M/c CNC or PC based controls
External Track Grinding M/c CNC or PC based controls
Cam/Punch Profile Grinding M/c CNC or Manual
Face Grinding M/c (up to 2000mm OD) CNC or PLC based controls
Duplex Face Grinding M/c CNC or PLC based controls (Disk-Brake Rotors)
Hollow Grinding SPM PLC (compressor valves & valve springs)
Socket Milling SPM (Up to 350mm OD) PLC – (for Bearing Cages)
Other SPM to suite customer specific requirements
