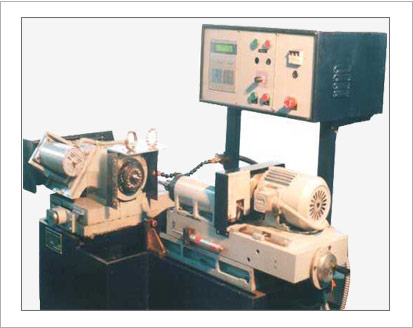

  SOCKET MILLING SPM



DRILLING & TRAPING
HOLLOW GRINDING OF COMPRESSOR VALVES
DUPLEX GRINDING OF DISK BREAK ROTORS





  Download Brochure for more detail (PDF) click here
APPLICATIONS

  • Brass Bearing Cages - Two Models
     MODEL : SM:125 - COMPONENT SIZE RANGE : UP TO 120 mm OD, PCD 110mm Max.
  • Profile of Socket: Cylindrical, spherical, conical
  • Max Depth of Socket: 20mm.
  • Max Cutter OD 16mm.
  • Indexing by Stepper Motor & Index lock.
  • Movements by high speed Pneumatics.
  • Feed Rate Control by Hydraulic Control Unit.


MODEL : 933 - COMPONENT SIZE RANGE : UP TO 350 mm OD, PCD 320mm Max.
  • Profile of Socket: Cylindrical, Spherical, conical
  • Max Depth of Socket: 60mm
  • Max OD of Cutter: 35mm.
  • Indexing by Stepper Motor & Index lock.
  • Movements by Hydraulics.
  • Adjustable Feed Rate.
OUR PRODUCT RANGE
CYLINDRICAL GRINDING MACHINES CNC, PLC & Manual (see table for details)
Internal Grinding M/c CNC or PC based controls
External Track Grinding M/c CNC or PC based controls
Cam/Punch Profile Grinding M/c CNC or Manual
Face Grinding M/c (up to 2000mm OD) CNC or PLC based controls
Duplex Face Grinding M/c CNC or PLC based controls (Disk-Brake Rotors)
Hollow Grinding SPM PLC (compressor valves & valve springs)
Socket Milling SPM (Up to 350mm OD) PLC – (for Bearing Cages)
Other SPM to suite customer specific requirements
